Description
Why Choose the Wizard Series?
The Wizard Series sets itself apart from generic LED drivers by delivering true dimmable performance without strobing or brightness drop-off at low levels. Each unit is rigorously tested to meet marine-grade reliability standards, ensuring consistent output and long-lasting performance even in saltwater environments.
Trusted by professionals, the Wizard Series provides flicker-free lighting and durable construction that outperforms traditional drivers.
Installation Tips
- Use 14–18 AWG wire for AC input and 16–20 AWG wire for DC output.
- Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.
- For marine or RV use, seal connections with dielectric grease or waterproof connectors.
- Always verify dimmer compatibility before full installation.
Why You’ll Love It
-
True Dimmable Control – Works seamlessly with standard triac and ELV dimmers for smooth fade control and zero flicker.
-
Marine-Ready Durability – Engineered for harsh, humid, or outdoor conditions with IP-rated protection and overload safeguards.
-
High Efficiency – Converts power with up to 92% efficiency, reducing energy loss and heat buildup.
-
Universal Input Range – Accepts 100–277V AC, ideal for both U.S. and international electrical systems.
-
Plug-and-Play Installation – Compact form factor mounts easily in bulkheads, cabinets, or lighting compartments.
Available Variants & Specifications:
| Part Number | Output Voltage | Wattage | Input Voltage | Max Amperage |
|---|---|---|---|---|

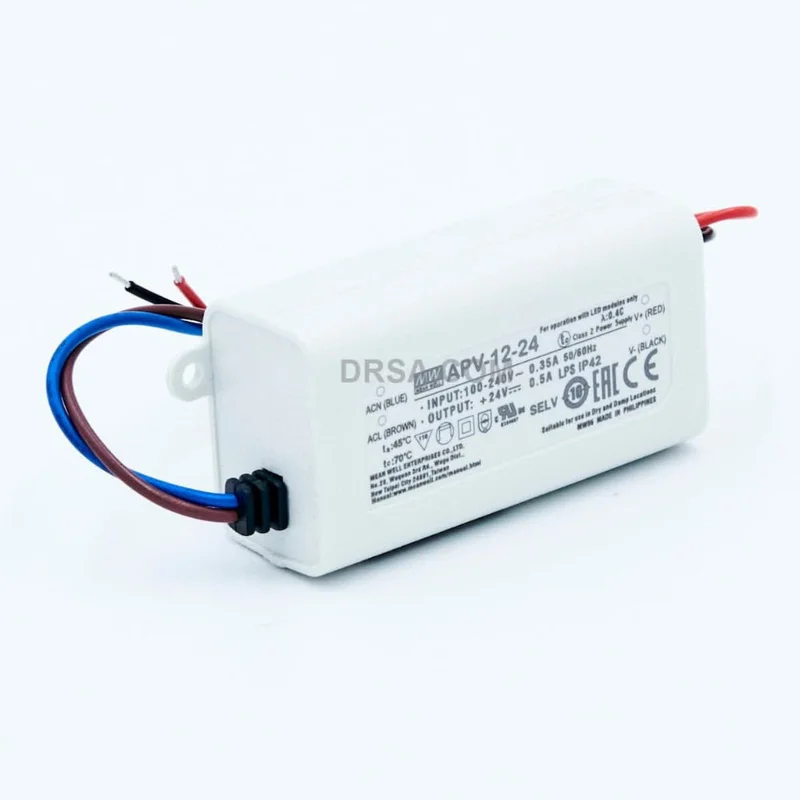

| 007.120800.120 | 12VDC | 12W | 100-120V AC | 1A |
| 007.120800.120-24 | 24VDC | 12W | 100-120V AC | 0.5A |
| 007.301000.G2 | 12VDC | 30W | 100-277V AC | 2.5A |
| 007.301024.G2 | 24VDC | 30W | 100-277V AC | 1.25A |
| 007.604000.G2 | 12VDC | 60W | 100-277V AC | 5A |
| 007.604000.G2-24 | 24VDC | 60W | 100-277V AC | 2.5A |

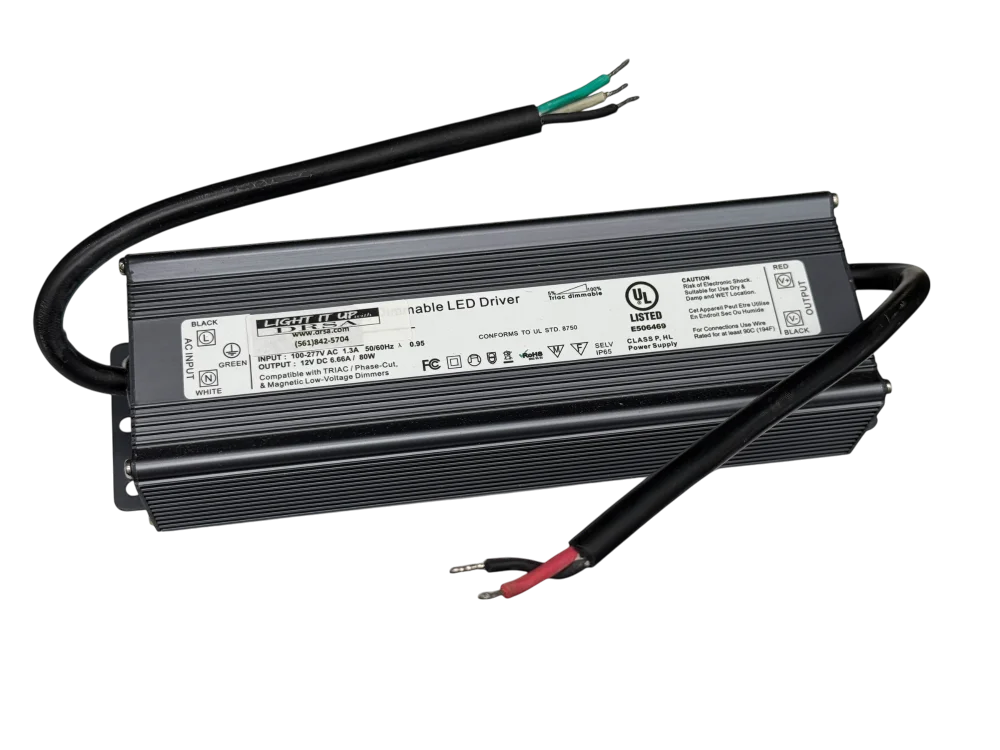

| 007.805500.G2 | 12VDC | 80W | 100-277V AC | 6.67A |
| 007.805524.G2 | 24VDC | 80W | 100-277V AC | 3.33A |
| 007.120700.G2 | 12VDC | 120W | 100-277V AC | 10A |
| 007.120724.G2 | 24VDC | 120W | 100-277V AC | 5A |
| 007.12200.G2 | 12VDC | 200W | 100-277V AC | 16.67A |
| 007.24200.G2 | 24VDC | 200W | 100-277V AC | 8.33A |
| 007.24300.G2 | 24VDC | 300W | 100-277V AC | 12.5A |
Perfect For:
💡 Marine LED lighting systems
🏠 Architectural & home lighting
🚐 RV & automotive LED applications
🏢 Commercial LED installations
🔌 Custom dimmable LED setups
Why Choose the Wizard Series
The Wizard Series stands apart from generic LED drivers by offering true dimmable performance without strobing or drop-off at low brightness levels. Every unit is tested to meet marine-grade reliability standards, ensuring consistent output and long life even in saltwater environments.
Customers trust the Wizard series for flicker-free lighting and durable construction that outlasts traditional drivers.
Installation Tips
-
Use 14–18 AWG wire for AC input and 16–20 AWG for DC output.
-
Mount in a ventilated area with at least 2 inches of clearance for heat dissipation.
-
For marine or RV use, seal connections with dielectric grease or waterproof connectors.
-
Always verify dimmer compatibility before full installation.
Warranty
DRSA 3-Year Warranty
Covers defects in materials and workmanship for three years from the purchase date.
For technical support or wiring guidance, contact DRSA at (561) 842-5704 or email sales.
