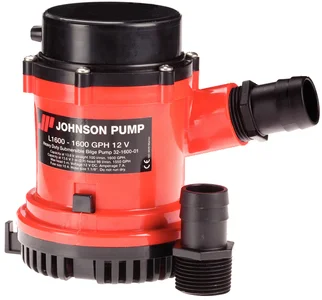

Johnson Pump 16004-00 Heavy Duty 1600 Bilge Pump 12V

Johnson-Pump Heavy Duty Bilge Pump – 1600 Series

Designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lip seal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2″ or 2″ ports makes for a simple installation. Removable check valve included.

• Shaft: SS2343
• Wire size: 1.3mm – 16 GA
• Wire length: 1.8m – 6ft
• Max height: 1.49mm – 5.86″

Specifications:

• Description: 1600 12V
• Capacity 1.0m head: 98 I/min – 1550 GPH
• Capacity straight: 100 I/min – 1600 GPH
• Amperage: 7A
• Fuse Size: 10A
• Connection: 1-1/8″ and 1-1/4″
