Victron Phoenix Inverter 12/800 - 120V - VE.Direct GFCI Duplex Outlet - 650W [PIN121800510]
Sale!
2026_07_04_178649

Victron Phoenix Inverter 12/800 – 120V – VE.Direct GFCI Duplex Outlet – 650W [PIN121800510]

Original price was: $271.15.Current price is: $67.78.

SKU: 8977314054383 Category:

Description

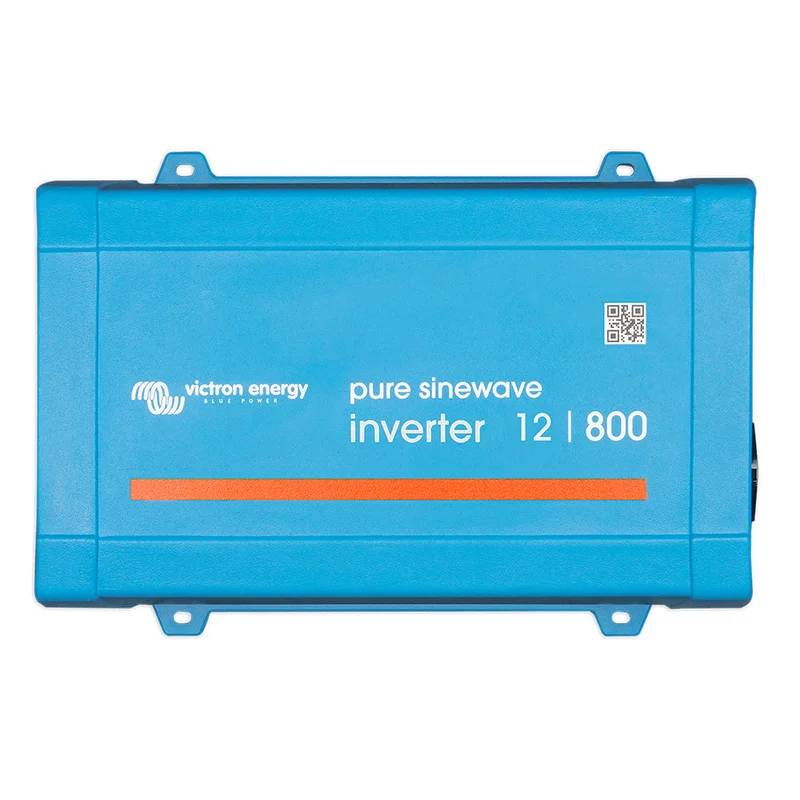

Victron Phoenix Inverter 12/800 – 120V – VE.Direct GFCI Duplex Outlet [PIN121800510]

Compact, Efficient Pure Sine Wave Inverter for Marine, RV & Off-Grid Power Systems

The Victron Phoenix 12/800 Inverter delivers 650W of clean, reliable 120V AC power from a 12V DC battery bank—ideal for sensitive electronics, marine stereos, navigation systems, and off-grid equipment. This compact inverter features a GFCI duplex outlet, VE.Direct monitoring, and UL 458 certification, making it perfect for marine and RV applications.

With 90% peak efficiency, ECO mode for low idle power, and a 1500W surge capacity, this inverter handles a range of onboard AC loads—from LED lighting to small power tools. Its rugged IP21-rated housing and built-in safety protections make it a reliable choice for demanding mobile environments.

Why You’ll Love It

  • Pure Sine Wave Power (650W) – Safe for laptops, audio systems, navigation gear, and more

  • 1500W Peak Power – Supports high-surge loads like pumps, lights, and tools

  • GFCI Duplex Outlet – Protects against ground faults in marine/RV environments

  • VE.Direct Port – Connects to PC (via USB) or mobile device (via Bluetooth dongle) for monitoring

  • ECO Mode – Reduces idle consumption to just 1W

  • Fully Programmable – Customize alarm thresholds, shutdown points, and ECO settings via software

  • UL 458 & FCC Certified – Compliant with safety and interference standards for mobile use

  • Compact & Lightweight – Only 12.8″ long and 12 lbs for easy installation in tight spaces

Perfect For

  • Boats and yachts (navigation systems, lighting, AV)

  • RVs and campers (TVs, chargers, coffee makers)

  • Off-grid solar systems or backup AC power

  • Sensitive electronics needing clean, stable output

Technical Specifications

Feature Details
Model PIN121800510
Input Voltage 12V DC (range: 9.2–17V)
Output Voltage 120V AC ±3%, 60Hz ±0.1% (adjustable to 50Hz)
Continuous Output 800VA (650W /live/ve.direct:phoenix-inverters-dynamic-cutoff
  • DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V
  • Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V
  • Max. Efficiency: 90 / 90 / 91%
  • Zero-Load Power: 6,5 / 7 / 9,5W
  • Default Zero-Load Power in ECO Mode (default retry interval: 1 / 1,5 / 3,0W
  • ECO Mode Stop & Start Power Setting: Adjustable
  • Protection (2): a – f
  • Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)

    • Enclosure Specifications:

    • Material & Color: Steel chassis and plastic cover (blue Ral 5012)
    • Battery-Connection: Screw terminals
    • Maximum Cable Cross-Section: 25 / 10 / 10mm² /  AWG4 / 8 / 8
    • Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
    • Protection Category: IP 21
    • Weight: 5,5kg / 12lbs
    • Dimensions (H x W x D, mm): 105 x 230 x 325

    Accessories:

    • Remote On-off: Yes
    • Automatic Transfer Switch: Filax

    Standards:

    • Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
    • EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
    • Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

    Please contact your dealer for any returns, repairs or support issues related to this product.

    Specifications:

    • GFCI: Yes
    • Box Dimensions: 8″H x 12″W x 15″L WT: 15 lbs
    • UPC: 8719076049432

    Quick Guide (pdf)
    Owner’s Manual (pdf)
    Brochure (pdf)
